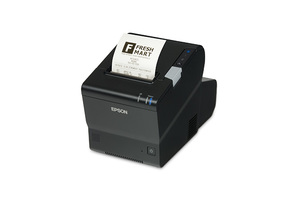

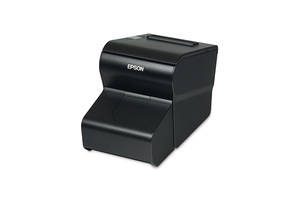

OmniLink TM-T88VI-DT2 Thermal POS Printer with Integrated PC

Contact Us

562-276-1314

Zoom In
OmniLink TM-T88VI-DT2 Thermal POS Printer with Integrated PC
OmniLink TM-T88VI-DT2 Thermal POS Printer with Integrated PC
OmniLink TM-T88VI-DT2 Thermal POS Printer with Integrated PC
OmniLink TM-T88VI-DT2 Thermal POS Printer with Integrated PC
OmniLink TM-T88VI-DT2 Thermal POS Printer with Integrated PC
OmniLink TM-T88VI-DT2 Thermal POS Printer with Integrated PC
OmniLink TM-T88VI-DT2 Thermal POS Printer with Integrated PC
OmniLink TM-T88VI-DT2 Thermal POS Printer with Integrated PC
OmniLink TM-T88VI-DT2 Thermal POS Printer with Integrated PC
OmniLink TM-T88VI-DT2 Thermal POS Printer with Integrated PC
OmniLink TM-T88VI-DT2 Thermal POS Printer with Integrated PC
OmniLink TM-T88VI-DT2 Thermal POS Printer with Integrated PC

The high-performance all-in-one POS printer with integrated PC.

A compact, all-in-one thermal POS printer with integrated PC, the OmniLink TM-T88VI-DT2 enables users to deploy the latest POS applications, while taking up minimal counter space. Featuring advanced connectivity, it supports a variety of POS applications engineered to improve the customer experience. Housed in a sleek casing that takes up to 70 percent less space than traditional POS systems1, the printer features options for built-in Windows® or Linux operating systems powered by an Intel® processor (Celeron®, i3, i5) to deliver the performance needed to support the latest POS applications.

Request More Info
Find Accessories Support
  • All-in-one thermal POS printer — with integrated high-powered PC
  • Supports the latest operating systems — built-in Windows 10 or Linux OS
  • Compact design — takes up to 70 percent less countertop space than traditional POS systems1
  • Intel processor — supports a variety of low- and high-powered processor options (Celeron, i3, i5)
  • Storage flexibility — SSD options (32GB, 64GB, 128GB, 256GB)
  • POS-peripherals future-proof connectivity — built-in USB 3.0 (x6), HDMI® and USB Type C technology in addition to USB 2.0 (x1), Serial, VGA, Audio (x1) and cash drawer port
  • Fast receipt printing — speeds up to 350 mm/sec2 and high-speed auto cutter
  • Advanced paper-saving functions — reduce paper usage by up to 49 percent3 with backward-paper feeding and character-height reduction
  • Remarkable printer reliability — 200 km printhead life4 and auto cutter life of 3 million cuts4

What's in the box:

  • OmniLink TM-T88VI-DT2 printer
  • Start Here
  • Roll paper guide
  • Roll paper
  • Recovery DVD (for Windows model)
  • Manual CD
  • Power switch cover
  • AC cable (depending on model)
  • Connector cover
  • AC adapter T1

Print Other:

Printing Technology: Thermal line printingPrint Speed: Max. 13.8"/sec (350 mm)2 graphics and text, 180 dpi

General:

Dimensions: 5.71" x 10.98" x 7.20" (145 x 279 x 183 mm) (W x D x H) inclusive of connector coverWeight: 6.17 lb (2.8 kg)Safety Approvals:
  • EMI standards: FCC/ICES-003 Class A
  • Safety standards: UL 62368-1:2014, CAN/CSA C22.2 No.62368-1-14
  • CB certification: IEC 62368-1:2014
Case Color: Epson Black (EBCK)Warranty: 3-year limited warranty in the U.S. and Canada

Print Fonts:

Column Capacity:
  • 80 mm: 42/56 columns
  • 58 mm model: 30/40 columns
Character Size:
  • Font A: 1.41 x 3.39 (W x H mm)
  • Font B: 0.99 x 2.40 (W x H mm)
Fonts:
  • Font A (default): 12 x 24
  • Font B: 9 x 17 (including 2-dot horizontal spacing)
Character Set:
  • 95 Alphanumeric
  • 18 International
  • 128 x 43 Graphic (including user-defined page)
  • Traditional/Simple Chinese
  • Thai
Barcode: UPC-A/E, CODE 39/93/128, EAN8/13, ITF, CODABAR 2D symbols: PDF417, QR-CODE, MaxiCode, Composite Symbology, GS1-128, GS1DataBar, Omnidirectional/Truncated/Limited/Expanded

Media Handling:

Thickness: 48 – 80 µmMedia Dimensions:
  • 80 mm: 3.13" ± 0.02" x 3.27" diameter (79.5 ± 0.5 (W) x 83 mm)
  • 58 mm: 2.26" ± 0.02" x 3.27" diameter (57.5 ± 0.5 (W) x 83 mm)

See epson.com/testedmedia for more information on Epson Tested Media.

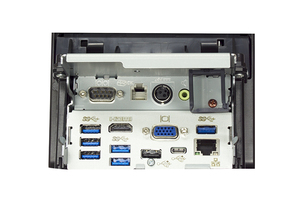

Connectivity:

Standard Connectivity:
  • USB 3.0 (Type-A) x 6, USB 2.0 (Type-A) x 1
  • USB 2.0 (Type-C)
  • Ethernet x 1 (10/100/1000Base-T/TX/T)
  • VGA x 1 (D-sub 15pin female)
  • HDMI x 1
  • Line out x 1 (3.5 mm stereo mini jack) for external speaker output
  • Cash drawer x 1 (RJ12 6pin)
  • Serial x 1 (D-sub 9pin male)

Hardened PC:

Processor:
  • Intel Core i5-7300U 2.60 GHz
  • Intel Core i3-7100U 2.40 GHz
  • Intel Celeron 3965U 2.20 GHz
System Memory: 4.0GB DDR4-2133, SO-DIMMOperating System:
  • Windows 10 IoT Enterprise 2016 LTSB 64bit (Windows model)
  • Linux
Other:
  • Video Controller: Intel HD Graphics 620 (built into CPU)
  • Auxiliary Storage: SATAIII SSD M.2 type 2242 (32GB or more)
  • Device Control Software: ePOS-Device
  • Backup Battery: Backup RTC/CMOS by lithium primary battery
  • Sound Capability: Internal monaural speaker

POS Details:

Reliability:
  • MTBF
    • Controller: 169,000 hours (excluding SSD, fan, and options)4
    • Printer: 360,000 hours4
    • AC adapter: 150,000 hours4
  • MCBF
    • Printer: 70,000,000 lines4
    • Thermal printhead life: 200 km4
    • Auto cutter life: 3 million cuts4
D.K.D.: 2 driversOptions:
  • AC adapter T1
  • Printer affixing tape: DF-10

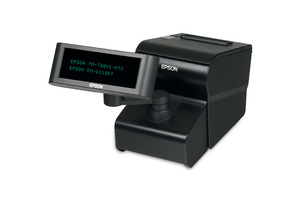

  • Customer displays: DM-D110 (part numbers: A61B133113, A61B133133), DM-D30 (part number: A61CF26111)

Power:

Power Requirements: AC100 to 240 V / 50 to 60 Hz (dedicated AC adapter)Power Source: 24 VDC ± 7%
See Full Specs Hide Full Specs
Print All Specs

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

1 Based on W x D x H dimensions of POS systems; Toshiba Sure POS 500 models; Toshiba TCx models 360/370/380/740/780; Dell Optiplex 9020 – (MT).

2 Speed based on using 80 mm wide media only.

3 Paper savings depend on the text and graphics printed on the receipt.

4 Rated printhead and cutter lives are only estimates based on normal use of the printer with the following media only, with printer operated at room temperature and normal humidity: Model KT55FA: Papierfabrik August Koehler SE; Model PD160R: Oji Imaging Media Co., Ltd.; Model TF50KS-Y: NIPPON Paper Industries Co., Ltd. Epson’s statements about reliability levels are not warranties of the media or Epson’s printers, and the only warranties for printers are the limited warranty statements for each printer. See epson.com/testedmedia for more information on Tested Media.
